Xiaogan Kuohai Medical Technology Co., Ltd. is one of the most reliable manufacturers and suppliers of tissue stainer in China, featured by quality products and good price. If you're going to wholesale advanced tissue stainer made in China, welcome to get quotation from our factory. Also, customized service and 1 year warranty are available.

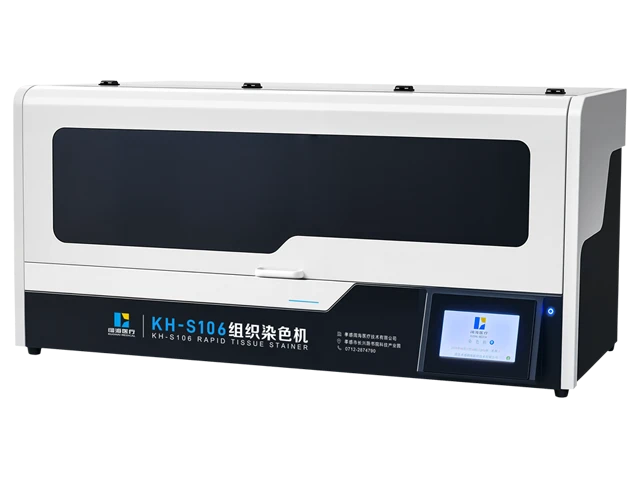

KH-S106 TISSUE STAINER
Introducing a new transmission mechanism for precise staining; equipped with a dedicated drying cylinder, eliminating the need forseparate drying; allowing for temperature settings for stains such as hematoxylin, achieving excellent staining results even in winter;many more superior features await your experience.
Performance Parameters
01.7" high-definition color touchscreen display. A password can be set to prevent unauthorized operation.
02.Equipped with a high-speed motor, the boom can switch between any two cylinders within two seconds, reducing cylinder-chang-ing time. Ideal for frozen section analysis requiring rapid results, and even more suitable for Papanicolaou staining with stringentstaining and differentiation requirements. It also significantly improves staining effects for various staining protocols such as HEstaining and Wright's staining.
03.Intelligent dynamic detection function tracks and monitors specimen movement, and can identify and handle various abnormali-ties to prevent specimen damage.
04.Environmentally friendly model, using activated carbon filtration and a fully sealed internal circulation system to ensure operatorprotection from harmful gases.
05.The washing cylinder features automatic bottom water inlet and drainage 3cm below the top opening, preventing water overflowdue to pump malfunction and avoiding the washing away of diagnostic cells by excessive force during top spraying.
06.Automatic heating function for staining agents such as hematoxylin and ethylsin (also usable for tissue dewaxing), resulting inbetter and more stable staining effects.
07.Designed with 18 reagent cylinders and a 1000ml staining solution cylinder (some reagent cylinders are reusable, reducing unnec-essary reagent waste), the staining steps are open and can be added or removed at will, making the staining machine bothlightweight and convenient while fully meeting staining requirements.
08.The horizontal drive of the boom uses a synchronous toothed belt combined with a stepper motor for more precise operation.
09.The reagent name and color of each cylinder can be arbitrarily set for easy observation of reagent usage (except for the first andlast cylinders).
10.Machines with an SD card can view operation and running records on the screen.
11.Up to 90 running programs can be set, each program can have 40 running steps, and each program can be copied and pasted, andeach step can be added or deleted, facilitating program adjustment and modification.
12.The staining machine's operation display screen shows a "self-test" item, has an abnormal protection function to prevent cylinderjamming, and can display the operating status and various functions in real time.
13.Equipped with a dedicated hot air drying cylinder, it automatically dries slides within one minute.
Technical Parameter
| Voltage: AC 220V ± 10% | Reagent Cylinder: 18 Cylinders |
| Power Supply Frequency: 50+1 HZ | Cylinder Capacity: 1000mL |
| Rated Power: ≤500W | Maximum Staining Quantity: 74 Slides/Batch |
