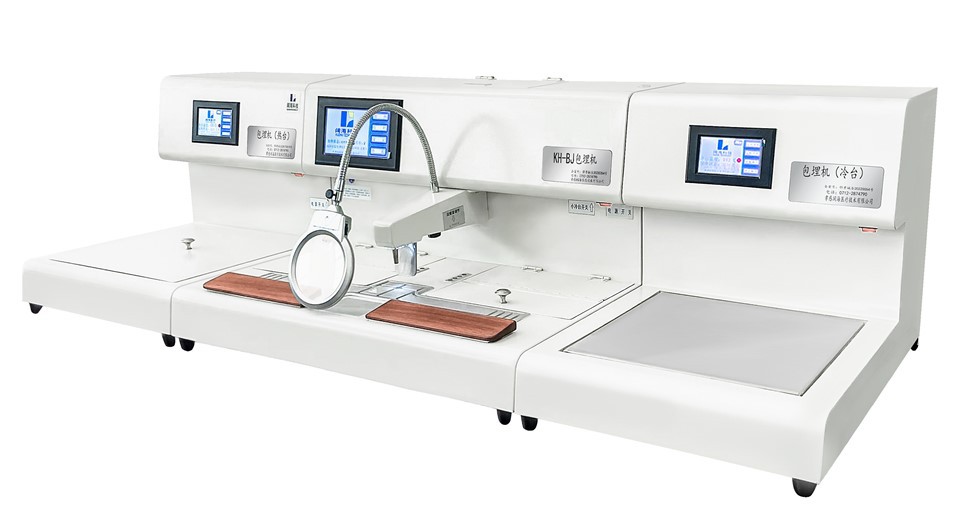

Tissue Embedding Center with cold plate

(1) Large capacity of the main paraffin cylinder which can hold more paraffin, increase its toughness with multiple heating to ensure the organized wax block not easy to break when slicing

(2) Automatic cleaning of residual paraffin: large area of residual paraffin automatic cleaning heating table, equipped with paraffin guide groove, heating at any time to make the residual paraffin on the table automatically flow into the thermal insulation box, effectively prevent residual paraffin overflow on the workbench. With paraffin block shaping correction unit, paraffin repair, refrigeration, reflux, cleaning and other multi-functional integrated table

(3) High-quality stainless steel table, all color touch large screen LCD display and intelligent software control

(4) Configuration of anti-condensation water overflow of the split large cold table, equipped with a strong cooling of small cold table in the paraffin outlet to prevent the gastroscope and other small tissues not drift, instantly cooling of small cold table facilitates the specimen to be quickly refrigerated and buried

(5) Standby software is designed for the safety risk of heating products powered on for a long time. In non-working standby state, the whole machine will be powered off with micro-current standby which is saving energy and safety. Reservation-type power on and off function for setting the timing of power on and off time on the day of the week, the embedded machine can be automatic power on and off every day without manual management

(6) Smart key function ensure the embedding machine operate normally when there is no display on the screen and the touch function damaged

(7) PID fuzzy automatic control technology, stable performance and accurate control

(8) Multiple temperature protection, no contact heating, safety and prevent thermal inertia

(9) Adopts electronic and mechanical dual control for temperature, with overtemperature mechanical protection if the electronic temperature control is damaged

(10) Multiple paraffin precipitation filtration function for the smoothy flow of paraffin

(11) Hand and foot double control paraffin function, the amount of paraffin can be adjusted arbitrarily at the port

(12) With eight holes of tweezers heating block

(13) A paraffin repair device is equipped with the working table to trim the paraffin sticking around the embedded box and seal the section of the paraffin block

(14) Equipped with adjustable position magnifying glass for easily observing small tissue

(15) Working mode: automatic software contact switch and foot movement

(16) Shadowless lamp lighting design to protect the operator's eye health

Type	Tissue Embedding Center
Model number	KH-BJ
Brand name	Kuohai
Place of origin	China
Instrument classification	Class I
Warranty	1 year
After-sale service	Online technical support
Main paraffin cylinder volume	9 L
Paraffin cylinder temperature range	Adjustable from room temperature to 85°C
Insulation box temperature range	Adjustable from room temperature to 85°C
Workbench temperature range	Adjustable from room temperature to 85°C
Cooling stage refrigeration temperature	From room temperature to －40℃
Freezing station refrigeration area	330×320mm
Continuously processed tissues at one time	3200
Power supply	AC220V±10% 50HZ±1HZ
Power	≤1000W



Product packing and shipping details



(1) Before the product leaves the factory, our company will strictly inspect and debug all components of the machine and equipment, and test whether the equipment can be used and installed normally.

(2) In order to prevent the product from being squeezed and damaged during long-distance transportation, we will use thick foam to fix the four corners of the product, and use standard export wooden boxes for external packaging.

(3) If you need OEM and ODM services and have separate product packaging solutions and logo printing standards, please communicate your plans and standards with us in advance. We can package the product according to your requirements.

(4) Transportation methods: a combination of sea, land, railway, air, and express delivery.



FAQ



What instrument is used for tissue embedding machine?

A tissue embedding machine is a device used in histology laboratories for the preparation of tissue samples for microscopic examination. The instrument used for tissue embedding is called a tissue embedding center, and it typically consists of two main components: the embedding console and the embedding station.



The key instrument used in the tissue embedding process is the embedding station, which includes a heated paraffin bath. The paraffin bath is used to melt and maintain liquid paraffin wax at a specific temperature. Tissue specimens are processed through a series of steps that involve dehydration and clearing in solvents before being impregnated with liquid paraffin. The tissue is then embedded in a mold filled with liquid paraffin, which solidifies as it cools, creating a block of tissue embedded in paraffin.



Histology technicians use specialized molds to create blocks that are easy to handle and section. These blocks are then mounted on a microtome, a separate instrument used for cutting thin sections of tissue for mounting on slides.



In summary, the key instrument for tissue embedding is the embedding station, which includes a heated paraffin bath. The entire tissue embedding center may also include additional features such as a cold plate, forceps warmer, and a workstation for embedding cassettes.
