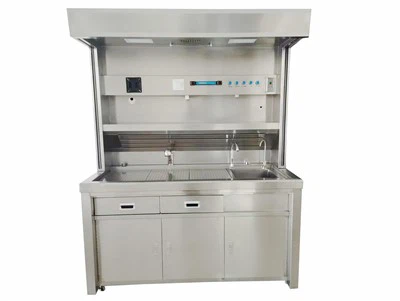

Performance and Technical Specifications:
Made of high-quality matte stainless steel with excellent corrosion resistance and high strength. The worktop is SUS304 stainless steel with a thickness of 1.2 mm.
The entire work surface is finely polished with no visible weld marks. The brushed finish reduces glare, minimizes eye fatigue during long operations, prevents scaling, and is easy to clean.
Ample legroom is reserved under the workbench area. The grinder is built-in and not exposed. Both sides of the lower cabinet are enclosed structures with openable doors for storage and maintenance. The upper cabinet is equipped with retractable tempered-glass side panels for better transparency and unobstructed visibility for both operators and recorders.
A professionally designed exhaust outlet is positioned below the operator's waist, adopting a rear negative-pressure extraction system. The upper exhaust panel forms a 60° angle, effectively directing airflow opposite to the operator and ensuring harmful gases are extracted before being inhaled.
Equipped with an ultra-quiet fan, rated speed 2200 r/min, air volume 1200 m³/h.
The left side of the workbench is equipped with a spray system for rinsing the surface, featuring a retractable hot and cold water faucet that can reach different working areas. The sink is fitted with a high-arc gooseneck faucet with sensor control to prevent secondary contamination when operators need to clean their hands, ensuring safe and thorough cleaning with no dead corners.
The stainless-steel angle valve controls the side spray water flow, while the sensor device controls the hot and cold water faucet.
The working area features a recessed design with a 3° slope toward the sink, allowing wastewater to drain smoothly without external force and preventing water accumulation on the surface.
Equipped with a dedicated water heater for the workstation, providing both storage and instant hot water supply, with two-level adjustable temperature control.
The sink is seamless and integrally welded, with dimensions ≥340×330×170 mm. A non-magnetic knife holder is installed above the working area for convenient placement and retrieval of dissection tools.
Lighting includes two 12W ultra-thin LED lamps and an additional 7W anti-glare LED spotlight for auxiliary illumination during specimen processing.
Equipped with a 30W high-efficiency ultraviolet disinfection lamp with automatic timer shut-off for post-operation sterilization.
The entire electrical system is fitted with leakage and overload protection devices to ensure absolute user safety.
High-power grinder with electric switch, three-stage grinding, stainless steel inner chamber and blades, and overload protection.
Optional: gross specimen imaging system.
Overall dimensions: 1500 × 800 × 1950 mm (L × W × H).
Working area dimensions: 1380 × 460 mm.
Power supply: 220V ±10%, 50Hz.
Power: 1600W.
Weight: 200 kg.
